C-SEC

Air-Insulated Switchgear · CSA 24

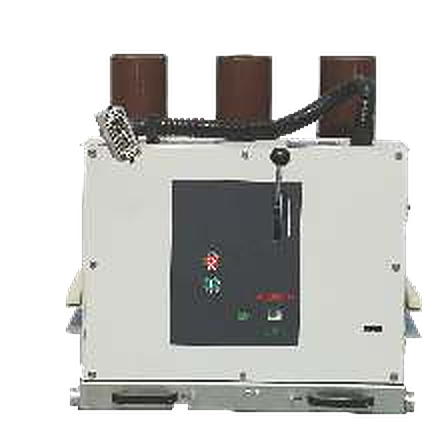

24 kV Air-Insulated Switchgear with Draw-Out VCB

C-SEC's 24 kV class air-insulated switchgear is part of the company's primary distribution portfolio. The draw-out vacuum circuit breaker arrangement supports an engineered approach to medium-voltage switching, protection and maintenance access in appropriate applications.

24 kVIndoorEngineering review
Request a QuoteAsk an Engineer
C-SEC CSA 24 24 kV air-insulated switchgear panelCSA 24 panel · catalogue photograph

01

Design purpose

A distribution installation requires more than a voltage match. Continuous current, prospective fault current, insulation requirements, cable interfaces and feeder operations determine the correct panel specification. This product should be selected against the approved electrical and mechanical rating matrix.

02

Key design considerations

  • 01Busbar and feeder arrangement
  • 02breaker operating duty
  • 03metering and protection
  • 04room and cable-trench dimensions
  • 05temperature and environmental conditions
  • 06operating and maintenance access

03

Typical projects

Utility and industrial MV distribution schemes, infrastructure and project installations where the approved 24 kV switchgear configuration fits the network design.

04

Technical table

05

Configurations

Select the number of incomers, outgoing feeders, bus sections and metering functions with the project electrical SLD.

06

Documentation

Request 24 kV AIS Technical Pack

Features

General characteristics

  • 01Modular construction
  • 02Extensible lineup
  • 03Operated exclusively from the front
  • 04Internal arc resistant design
  • 05Racking-in and racking-out of MV breaker behind arc-proof doors
  • 06Several optional equipment available

As listed in the C-SEC MV Switchgear Catalogue (2022).

Typical functions · Typical lineup

Select a unit

INIncomer VCBOUTOutgoing VCBOUTOutgoing VCBB/CBus couplerPTPT / metering

Typical arrangement drawn from the catalogue's typical functions. Your project configuration comes from the network SLD.

Specifications

Technical data

Catalogue model · CSA 24

Technical data from the C-SEC Medium Voltage Switchgear Catalogue (2022, QMS/FRM/SDM/72-04 R2 Issue 05)
CharacteristicUnitCSA 24
Electrical data
Rated voltagekV24
Lightning impulse withstand (1.2/50 µs)kVp125
Power-frequency withstand (50 Hz, 1 min)kVrms50
Rated frequencyHz50
Rated currentA630 to 1600
Breaking currentkArms25
Making currentkAp63
Rated short-time currentkArms25 for 3 s
Mechanical & service
Protection degree—IP4X (others on request)
Standard colour—RAL 7035 (others on request)
Ambient temperature°CBasic −5 … +40; option −10 … +55
Dimensions
Heightmm2350
Depthmm1700
Width — up to 1600 A, 25 kAmm800

Source: C-SEC Medium Voltage Switchgear Catalogue (2022, QMS/FRM/SDM/72-04 R2 Issue 05). Technical characteristics vary by model and project configuration — refer to the latest approved C-SEC datasheet.

Engineering review

Documents

Technical documents

Only approved files are published. Project-specific documents are shared on request.

Questions about the 24 kV AIS

By the complete electrical duty and installation criteria—not voltage class alone.

Share the SLD and schedule to confirm available configurations.

Available documentation depends on the product/configuration and disclosure terms; ask the technical team.
