Air-Insulated Switchgear · CSA 36
36 kV Air-Insulated Switchgear with Draw-Out VCB
For primary distribution schemes requiring a 36 kV class switchgear solution, C-SEC lists an air-insulated panel system with draw-out vacuum circuit breaker. The correct equipment depends on network voltage, insulation coordination, fault level, site conditions and protection design.

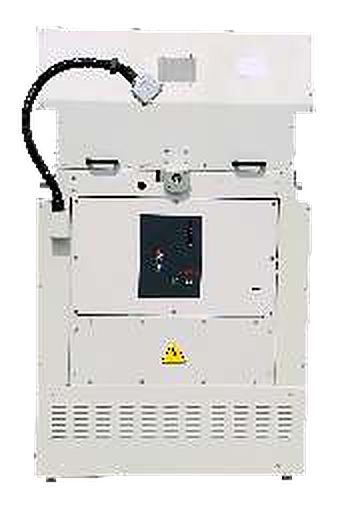

CSA 36 panel · catalogue photograph01
Application perspective
Medium-voltage equipment at this class is commonly specified where increased insulation requirements and suitable network duty make it the appropriate choice. C-SEC's engineering team can review project drawings and determine whether an approved lineup can meet the specification.
02
Engineering decision points
- 01Insulation withstand levels
- 02rated continuous current
- 03short-circuit duty
- 04panel arrangement and clearances
- 05cable termination
- 06system earthing
- 07protection relay and control philosophy
03
Product options
Share the feeder schedule and protection philosophy to establish whether the required incomer, outgoing, bus-coupler and metering functions are within the approved lineup.
04
Technical table and downloads
05
Field proof
Features
General characteristics
- 01Modular construction
- 02Extensible lineup
- 03Operated exclusively from the front
- 04Internal arc resistant design
- 05Racking-in and racking-out of MV breaker behind arc-proof doors
- 06Several optional equipment available
As listed in the C-SEC MV Switchgear Catalogue (2022).
Typical functions · Typical lineup
Select a unit
Typical arrangement drawn from the catalogue's typical functions. Your project configuration comes from the network SLD.
Specifications
Technical data
Catalogue model · CSA 36
| Characteristic | Unit | CSA 36 |
|---|---|---|
| Electrical data | ||
| Rated voltage | kV | 36 |
| Lightning impulse withstand (1.2/50 µs) | kVp | 170 |
| Power-frequency withstand (50 Hz, 1 min) | kVrms | 70 |
| Rated frequency | Hz | 50 |
| Rated current | A | 630 to 1600 |
| Rated breaking current | kArms | 25 |
| Rated making current | kAp | 63 |
| Rated short-time current | kArms | 25 for 3 s |
| Mechanical & service | ||
| Protection degree | — | IP4X (others on request) |
| Standard colour | — | RAL 7035 (others on request) |
| Ambient temperature | °C | Basic −5 … +40; option −10 … +55 |
| Dimensions | ||
| Height | mm | 2250 |
| Depth | mm | 2570 |
| Width | mm | 1200 |
Source: C-SEC Medium Voltage Switchgear Catalogue (2022, QMS/FRM/SDM/72-04 R2 Issue 05). Technical characteristics vary by model and project configuration — refer to the latest approved C-SEC datasheet.
Documents
Technical documents
Only approved files are published. Project-specific documents are shared on request.
- Download
PDF · 2.2 MB · Rev. R2 Issue 05
MV Switchgear Catalogue (2022)
- Request for your configuration →
On request
Product datasheet
- Request for your configuration →
On request
GA / footprint drawing
- Request for your configuration →
On request
Typical SLD
- Request for your configuration →
On request
Installation prerequisites
- Request for your configuration →
On request
Test / standards declaration
Questions about the 36 kV AIS
No. They are distinct equipment arrangements with different functionality, construction and project selection criteria.
The exact relay and control interfaces must be confirmed for the chosen configuration.
Enquiry
Project-specific quotation
Share the key electrical parameters and the required panel functions for a technical review.
