33 kV Outdoor Vacuum Circuit Breaker Kiosk

C-SEC's 33 kV outdoor vacuum circuit breaker kiosk is a distinct outdoor equipment offering for medium-voltage switching and protection applications. The kiosk arrangement should be evaluated against its approved site, switching and control requirements.

33 kV36 kVOutdoorEngineering review
Request a QuoteAsk an Engineer

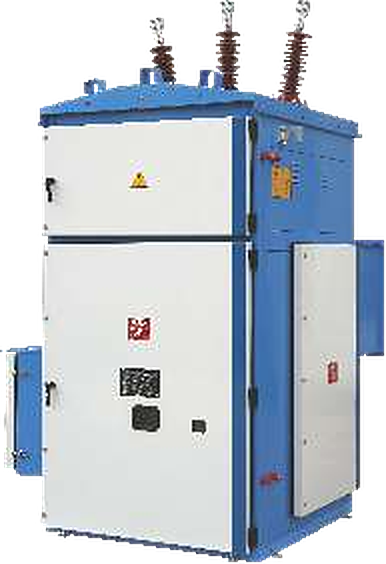

C-SEC CSS outdoor vacuum circuit breaker kiosk with bushingsCSS kiosk · catalogue photograph

01

How it differs from an RMU

An outdoor VCB kiosk and a Ring Main Unit may share a voltage class, but they are not interchangeable terms. Their switching functions, feeder arrangements, protection schemes, enclosures and installation requirements must be assessed separately.

02

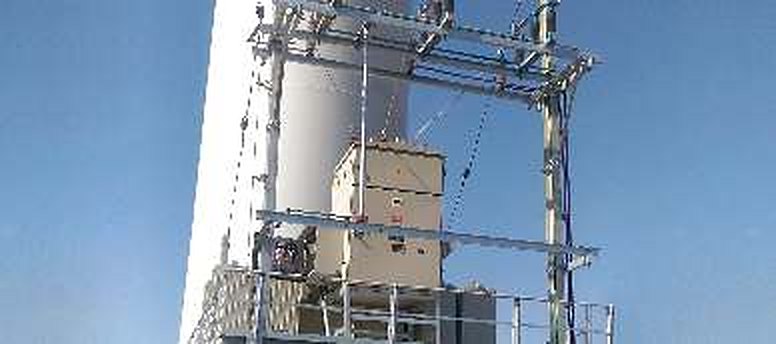

Installation and interface

Confirm foundation and civil arrangement, access and working clearances, cable entry, control-supply requirements, earthing, site exposure and switching/protection duties.

03

Technical information

  • 01Rated voltage
  • 02operating duty
  • 03interrupting rating
  • 04insulation withstand
  • 05enclosure/IP classification
  • 06dimensions/weight
  • 07control/protection integration
  • 08auxiliary supply
  • 09standards and test evidence

04

Request documents

Features

General characteristics

  • 01Compact solution for substations
  • 02Integrated unit with CB, CTs, PTs and protection
  • 03Suitable for outdoor installation
  • 04Available with OH conductor or cable termination arrangement
  • 05Equipped with vacuum circuit breaker
  • 06Listed in the catalogue as suitable for renewable generation applications

As listed in the C-SEC MV Switchgear Catalogue (2022).

Typical functions · Kiosk function

Select a unit

OUTOutgoing VCB

Typical arrangement drawn from the catalogue's typical functions. Your project configuration comes from the network SLD.

Specifications

Technical data

Catalogue model · CSS

Technical data from the C-SEC Medium Voltage Switchgear Catalogue (2022, QMS/FRM/SDM/72-04 R2 Issue 05)
CharacteristicUnitCSS kiosk
Electrical data
Rated voltagekV36
Lightning impulse withstand (1.2/50 µs)kVp170
Power-frequency withstand (50 Hz, 1 min)kVrms70
Rated frequencyHz50
Rated currentA630 / 800
Rated breaking currentkArms25
Rated making currentkAp62.5
Rated short-time currentkArms25 for 1 s or 3 s
Mechanical & service
Protection degree—IP55
Standard colour—RAL 7035 (others on request)
Ambient temperature°CBasic −5 … +40; option −10 … +55
Dimensions
Height (without base frame)mm2774
Widthmm1046

Source: C-SEC Medium Voltage Switchgear Catalogue (2022, QMS/FRM/SDM/72-04 R2 Issue 05). Technical characteristics vary by model and project configuration — refer to the latest approved C-SEC datasheet.

The catalogue lists the CSS kiosk with a rated voltage of 36 kV for 33 kV networks. Nominal network voltage and equipment rated voltage must not be conflated.
